The Suburban Tool TSC-6301036 is a square column tombstone built on a 630mm-class column and standing 36" tall, combining a large footprint with full vertical capacity for mounting vises, fixtures, and sub-plates in horizontal machining. Suburban Tool, Inc. keeps a large number of standard-size castings in stock, ready to machine to your workholding fixture needs.

  • One-piece class 40 cast iron, stress-relieved for lasting stability
  • Base and sides milled flat, square & square within 0.001" in 12"
  • DIN mounting standard, with optional JIS mounting
  • Tapped 5/8"-11 lifting holes and coolant drain holes at the column base
  • Order plain-milled or customized with your own hole pattern
  • Made in the USA by Suburban Tool
  • Other materials available on request.

Suburban Tool Inc.

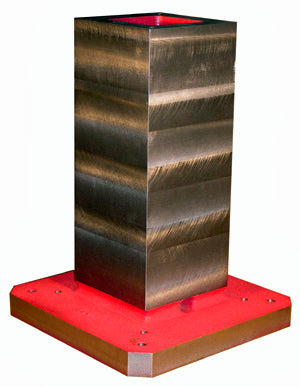

630mm Square Column Pallet Fixture, 10" × 36" (TSC-6301036)

SKU TSC-6301036
Contact for Pricing

The Suburban Tool TSC-6301036 is a square column tombstone built on a 630mm-class column and standing 36" tall, combining a large footprint with full vertical capacity for mounting vises, fixtures, and sub-plates in horizontal machining. Suburban Tool, Inc. keeps a large number of standard-size castings in stock, ready to machine to your workholding fixture needs.

  • One-piece class 40 cast iron, stress-relieved for lasting stability
  • Base and sides milled flat, square & square within 0.001" in 12"
  • DIN mounting standard, with optional JIS mounting
  • Tapped 5/8"-11 lifting holes and coolant drain holes at the column base
  • Order plain-milled or customized with your own hole pattern
  • Made in the USA by Suburban Tool
  • Other materials available on request.

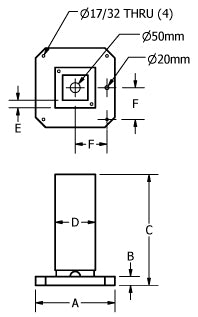

Specifications

Model TSC-6301036
A 630mm
B 2-1/4"
C 36"
D 10"
E 2-1/4"
F 9.84"
Weight 980 lb

Contact for Pricing

📞 Call (248) 391-7800 ✉ Email for a Quote
