Taft-Peirce Taper Testing Fixture

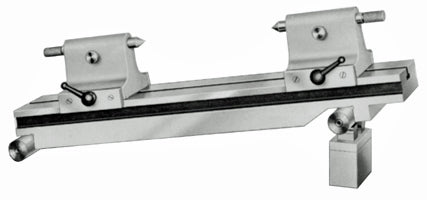

The Taft-Peirce sine block with center heads is a specialized 20" taper testing fixture that combines sine-bar accuracy with bench-center holding to check tapers on shafts and cylindrical work. Machinists and QC inspectors use it to verify taper angles precisely between centers.

Available from Suburban Tool, this Taft-Peirce sine block is Made in USA and precision ground, pairing the proven sine bar method with rigid center support for accurate taper inspection in the toolroom and QC lab.

  • Sine block taper testing fixture with center heads
  • 20" capacity for shafts and tapered work
  • Combines sine-bar accuracy with center holding
  • Premium Taft-Peirce precision, Made in USA

Prices in US$. Click a model number for photos, details and certification options.

Taft-Peirce Taper Testing Fixture

Swipe the table sideways for all specs. Price and Add to cart stay in view.

ModelLengthWidthHeightCenter DistanceWork CapacityWeightPrice
Between CentersDiameter
9122-20NSP24-1/16"4-3/4"6-3/8"20" ±0.0005"15"6"70 lb$12,542.25

Videos

How to Set a Sine Plate or Sine Bar
Sine Plate Comparison - Suburban vs EX-CELL-O vs Taft-Peirce
Free Online Calculator for setting a Sine Plate or Sine Bar from Suburban Tool
