4 models · Made in USA · Auburn Hills, Michigan

Magna-Sine Permanent Magnetic Sine Plates

Suburban Tool Magna-Sine permanent magnetic sine plates combine precise single-axis angle setting with a cordless permanent magnetic chuck that holds your workpiece firmly. With no power cable required, they set up quickly for precision grinding, layout, and inspection at the surface plate or grinder.

Machinists, tool & die makers, and QC/inspection teams rely on this magnetic sine plate to grind and check exact angles while the permanent magnet keeps parts flat and secure. Compact sizes from 4" x 4" up to about 18-1/4" x 6-3/4" fit toolroom needs. Use a sine plate calculator to set any angle. Made in USA.

  • Precise single-axis angle setting
  • Cordless permanent magnetic hold
  • Compact toolroom sizes
  • Made in USA by Suburban Tool

The Robbins Line. This premium line of sine plates came to Suburban Tool in 1989 with the purchase of the Ex-Cell-O / Robbins sine plate line from Micro Precision, a subsidiary of Textron. We build them to the same blueprints and production procedures, with improvements made along the way.

Prices in US$. Click a model number for photos, details and certification options.

Magna-Sine Permanent Magnetic Sine Plates

Swipe the table sideways for all specs. Price and Add to cart stay in view.

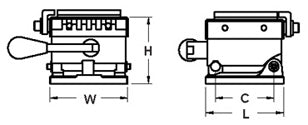

ModelLengthWidthHeightCenter Distance (C)Square & ParallelWeightPrice
B-3-MS4"4"3-1/2"3" ±0.0002"0.0002"13 lb$4,960.20
B-5-MS6-1/2"6-1/2"3-7/8"5" ±0.0002"0.0002"37 lb$5,377.05
B-10-MS6-1/2"12"4-1/2"5" ±0.0002"0.0003"70 lb$7,078.05
B-15-MS6-3/4"18-1/4"4-15/16"5" ±0.0003"0.0004"125 lbCall for price Call (248) 391-7800

Videos

How to Set a Sine Plate or Sine Bar
Sine Plate Comparison - Suburban vs EX-CELL-O vs Taft-Peirce
Free Online Calculator for setting a Sine Plate or Sine Bar from Suburban Tool
