28 models · Made in USA · Auburn Hills, Michigan

Plain Webbed Angle Plates

Suburban Tool plain webbed angle plates give machinists, tool & die makers, and QC/inspection teams a rigid 90-degree reference for holding, layout, and inspection work. The webbed design adds stiffness while keeping the angle plate light enough to handle on the surface plate or machine table.

This Made in USA collection includes both as-cast and precision-ground angle plates across many sizes.

  • Plain webbed angle plates in ground and standard finishes
  • Sizes from small 2" blocks to large 24" plates
  • Accurate 90-degree reference faces
  • Ideal for layout, setup, and inspection

Whether you need a right angle plate for the surface plate or the milling machine, Suburban Tool builds them for lasting accuracy and rigidity.

Prices in US$. Click a model number for photos, details and certification options.

Plain Webbed Angle Plates

Swipe the table sideways for all specs. Price and Add to cart stay in view.

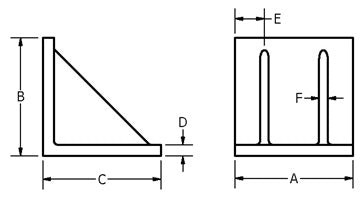

ModelFinishABCDEF# of WebsWeightPrice
PAW-020202-GGround2"2"2"1/2"1"7/16"11 lb$141.75
PAW-020202Milled2"2"2"1/2"1"7/16"11 lb$92.40
PAW-030303-GGround3"3"3"1/2"1-1/2"7/16"13 lb$157.50
PAW-030303Milled3"3"3"1/2"1-1/2"7/16"13 lb$96.60
PAW-040404-GGround4"4"4"5/8"2"1/2"17 lb$214.20
PAW-040404Milled4"4"4"5/8"2"1/2"17 lb$137.55
PAW-050505-GGround5"5"5"11/16"2-1/2"9/16"111 lb$336.00
PAW-050505Milled5"5"5"11/16"2-1/2"9/16"111 lb$181.65
PAW-060606-GGround6"6"6"3/4"3"5/8"118 lb$497.70
PAW-060606Milled6"6"6"3/4"3"5/8"118 lb$248.85
PAW-081006-GGround6"10"8"1-1/4"3"3/4"145 lb$763.35
PAW-081006Milled6"10"8"1-1/4"3"3/4"145 lb$452.55
PAW-080808-GGround8"8"8"7/8"2"11/16"242 lb$748.65
PAW-080808Milled8"8"8"7/8"2"11/16"242 lb$435.75
PAW-060810-GGround10"6"8"1"2-1/2"3/4"250 lb$800.10
PAW-060810Milled10"6"8"1"2-1/2"3/4"250 lb$488.25
PAW-101010-GGround10"10"10"1"2-1/2"3/4"270 lb$1,472.10
PAW-101010Milled10"10"10"1"2-1/2"3/4"270 lb$954.45
PAW-121212-GGround12"11-3/4"11-3/4"1-1/8"3"7/8"2125 lbCall for price Call (248) 391-7800
PAW-121212Milled12"11-3/4"11-3/4"1-1/8"3"7/8"2125 lbCall for price Call (248) 391-7800
PAW-121616-GGround16"16"12"1-1/2"4"3/4"2265 lbCall for price Call (248) 391-7800
PAW-121616Milled16"16"12"1-1/2"4"3/4"2265 lbCall for price Call (248) 391-7800
PAW-181818-GGround18"18"18"1-1/4"6"1"2345 lbCall for price Call (248) 391-7800
PAW-181818Milled18"18"18"1-1/4"6"1"2345 lbCall for price Call (248) 391-7800
PAW-122424Milled24"24"12"2-3/8"6"1"2410 lbCall for price Call (248) 391-7800
PAW-122424-GGround24"24"12"2-3/8"6"1"2410 lbCall for price Call (248) 391-7800
PAW-242424Milled24"24"24"2"4"1"2870 lbCall for price Call (248) 391-7800
PAW-242424-GGround24"24"24"2"4"1"2870 lbCall for price Call (248) 391-7800

Videos

Cast Iron Angle Plate Comparison - Suburban Tool vs Value Line
