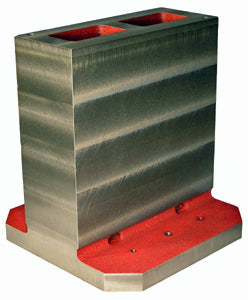

The Suburban Tool TSR-500836 is a 500mm x 8 x 36 rectangular column pallet fixture built tall to give horizontal machining centers extra vertical real estate for mounting vises, fixtures, and sub-plates. Cast in one piece from stress-relieved class 40 cast iron, it stays rigid and stable even when fully loaded on a 4th-axis pallet.

  • One-piece, stress-relieved class 40 cast iron for rigidity under heavy workholding.
  • Base and sides milled flat, parallel and square to 0.001" in 12".
  • DIN mounting standard, JIS mounting optional.
  • Available plain milled or custom made with your own hole pattern; other materials on request.
  • 5/8"-11" tapped lifting holes standard for safe handling of the casting.
  • Drawn from Suburban Tool's large stock of standard-size castings.
  • Made in the USA by Suburban Tool

Suburban Tool Inc.

500mm x 8 x 36 Rectangular Column Pallet Fixture

SKU TSR-500836
Contact for Pricing

The Suburban Tool TSR-500836 is a 500mm x 8 x 36 rectangular column pallet fixture built tall to give horizontal machining centers extra vertical real estate for mounting vises, fixtures, and sub-plates. Cast in one piece from stress-relieved class 40 cast iron, it stays rigid and stable even when fully loaded on a 4th-axis pallet.

  • One-piece, stress-relieved class 40 cast iron for rigidity under heavy workholding.
  • Base and sides milled flat, parallel and square to 0.001" in 12".
  • DIN mounting standard, JIS mounting optional.
  • Available plain milled or custom made with your own hole pattern; other materials on request.
  • 5/8"-11" tapped lifting holes standard for safe handling of the casting.
  • Drawn from Suburban Tool's large stock of standard-size castings.
  • Made in the USA by Suburban Tool

Specifications

Model TSR-500836
A 500mm
B 2-1/4"
C 36"
D 8"
E 500mm
F 2"
G 4.92"
H 6.30"
Weight 1078 lb

Contact for Pricing

📞 Call (248) 391-7800 ✉ Email for a Quote
