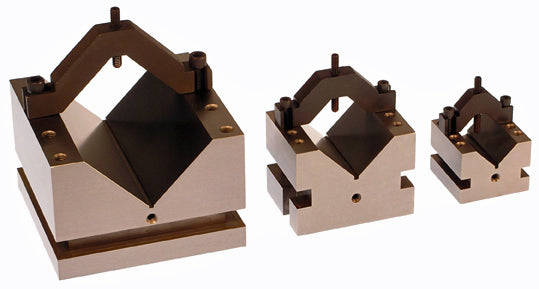

The VB-604-M-S1 is a matched metric V-block pair measuring 3" x 4" x 3" from Suburban Tool, engineered for precise workholding of round parts during grinding, inspection and layout. Each block is solid one-piece steel, hardened to Rc 58-60 for enduring toolroom accuracy.

As an S1 SineSet model, the VB-604-M-S1 bolts directly to a SineSet sine plate or compound sine plate of the same series, and also to the AP-664-S1 90 degree conversion plate for angled work.

  • Matched pair within 0.0003" for repeatable two-block setups
  • One reversible, swing-away clamp provided with each V-block
  • Side slots allow easy clamping to almost any work surface
  • Hardened Rc 58-60 steel resists wear over years of use
  • Available in both 60 and 90 degree models
  • Made in the USA by Suburban Tool
  • Pairs are matched within 0.0003".

Suburban Tool Inc.

V-Block, 3" × 4" × 3", Pair (Metric) (VB-604-M-S1)

SKU VB-604-M-S1
$2,084.25

The VB-604-M-S1 is a matched metric V-block pair measuring 3" x 4" x 3" from Suburban Tool, engineered for precise workholding of round parts during grinding, inspection and layout. Each block is solid one-piece steel, hardened to Rc 58-60 for enduring toolroom accuracy.

As an S1 SineSet model, the VB-604-M-S1 bolts directly to a SineSet sine plate or compound sine plate of the same series, and also to the AP-664-S1 90 degree conversion plate for angled work.

  • Matched pair within 0.0003" for repeatable two-block setups
  • One reversible, swing-away clamp provided with each V-block
  • Side slots allow easy clamping to almost any work surface
  • Hardened Rc 58-60 steel resists wear over years of use
  • Available in both 60 and 90 degree models
  • Made in the USA by Suburban Tool
  • Pairs are matched within 0.0003".

Specifications

Model VB-604-M-S1
Single or Pair Pair
SineSet® Series S1
Length 3"
Width 4"
Height 3"
Across Vee 1-31/32"
Vee Capacity (Dia.) 2-1/8"
Square, Parallel & Central 0.0002"
Weight 15 lb
$2,084.25
