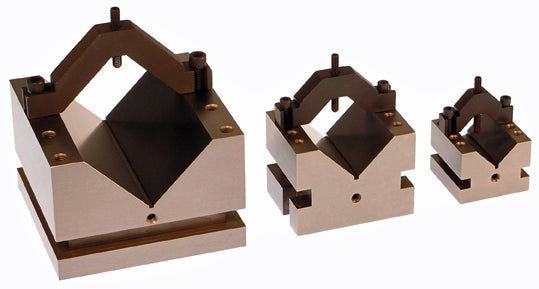

The VB-602-M-S0 is a matched pair of 2-1/2" x 2-1/2" x 2" SineSet® precision steel V-blocks from Suburban Tool, engineered for holding round work across two blocks during grinding, inspection and angular setups.

Each block is machined from solid one-piece steel and hardened to Rc 58-60, and the S0-series pair bolts directly to a SineSet® sine plate or compound sine plate of the same series for repeatable angles. Matched within 0.0003", the blocks keep cylindrical parts aligned, with a reversible swing-away clamp on each and side slots for flexible clamping.

  • Matched pair of one-piece steel V-blocks, matched within 0.0003"
  • Hardened to Rc 58-60 for durable toolroom accuracy
  • SineSet® S0 model bolts directly to S0 sine and compound sine plates
  • Reversible, swing-away clamp with each block; side slots for easy clamping
  • Offered in 60° and 90° models from Suburban Tool
  • Made in the USA by Suburban Tool
  • Pairs are matched within 0.0003".

Suburban Tool Inc.

V-Block, 2-1/2" × 2-1/2" × 2", Pair (Metric) (VB-602-M-S0)

SKU VB-602-M-S0
$1,610.70

The VB-602-M-S0 is a matched pair of 2-1/2" x 2-1/2" x 2" SineSet® precision steel V-blocks from Suburban Tool, engineered for holding round work across two blocks during grinding, inspection and angular setups.

Each block is machined from solid one-piece steel and hardened to Rc 58-60, and the S0-series pair bolts directly to a SineSet® sine plate or compound sine plate of the same series for repeatable angles. Matched within 0.0003", the blocks keep cylindrical parts aligned, with a reversible swing-away clamp on each and side slots for flexible clamping.

  • Matched pair of one-piece steel V-blocks, matched within 0.0003"
  • Hardened to Rc 58-60 for durable toolroom accuracy
  • SineSet® S0 model bolts directly to S0 sine and compound sine plates
  • Reversible, swing-away clamp with each block; side slots for easy clamping
  • Offered in 60° and 90° models from Suburban Tool
  • Made in the USA by Suburban Tool
  • Pairs are matched within 0.0003".

Specifications

Model VB-602-M-S0
Single or Pair Pair
SineSet® Series S0
Length 2-1/2"
Width 2-1/2"
Height 2"
Across Vee 1-5/32"
Vee Capacity (Dia.) 1-5/16"
Square, Parallel & Central 0.0002"
Weight 5 lb
$1,610.70

Add a certification?

The certificate is added to your cart as a separate line for this tool.

Allow up to 2 days for order processing. Items not in stock are made to order in Auburn Hills, Michigan; we email you the expected date, and they ship separately with their own shipping charge.

∼ Made in Auburn Hills, Michigan ∼ America’s Toolmaker for 60+ Years ∼ Precision Workholding & Metrology ∼ Made in Auburn Hills, Michigan ∼ America’s Toolmaker for 60+ Years ∼ Precision Workholding & Metrology ∼ Made in Auburn Hills, Michigan ∼ America’s Toolmaker for 60+ Years ∼ Precision Workholding & Metrology ∼ Made in Auburn Hills, Michigan ∼ America’s Toolmaker for 60+ Years ∼ Precision Workholding & Metrology ∼ Made in Auburn Hills, Michigan ∼ America’s Toolmaker for 60+ Years ∼ Precision Workholding & Metrology ∼ Made in Auburn Hills, Michigan ∼ America’s Toolmaker for 60+ Years ∼ Precision Workholding & Metrology ∼ Made in Auburn Hills, Michigan ∼ America’s Toolmaker for 60+ Years ∼ Precision Workholding & Metrology ∼ Made in Auburn Hills, Michigan ∼ America’s Toolmaker for 60+ Years ∼ Precision Workholding & Metrology ∼ Made in Auburn Hills, Michigan ∼ America’s Toolmaker for 60+ Years ∼ Precision Workholding & Metrology ∼ Made in Auburn Hills, Michigan ∼ America’s Toolmaker for 60+ Years ∼ Precision Workholding & Metrology ∼ Made in Auburn Hills, Michigan ∼ America’s Toolmaker for 60+ Years ∼ Precision Workholding & Metrology ∼ Made in Auburn Hills, Michigan ∼ America’s Toolmaker for 60+ Years ∼ Precision Workholding & Metrology ∼ Made in Auburn Hills, Michigan ∼ America’s Toolmaker for 60+ Years ∼ Precision Workholding & Metrology ∼ Made in Auburn Hills, Michigan ∼ America’s Toolmaker for 60+ Years ∼ Precision Workholding & Metrology ∼ Made in Auburn Hills, Michigan ∼ America’s Toolmaker for 60+ Years ∼ Precision Workholding & Metrology ∼ Made in Auburn Hills, Michigan ∼ America’s Toolmaker for 60+ Years ∼ Precision Workholding & Metrology ∼ Made in Auburn Hills, Michigan ∼ America’s Toolmaker for 60+ Years ∼ Precision Workholding & Metrology ∼ Made in Auburn Hills, Michigan ∼ America’s Toolmaker for 60+ Years ∼ Precision Workholding & Metrology ∼ Made in Auburn Hills, Michigan ∼ America’s Toolmaker for 60+ Years ∼ Precision Workholding & Metrology ∼ Made in Auburn Hills, Michigan ∼ America’s Toolmaker for 60+ Years ∼ Precision Workholding & Metrology

The VB-602-M-S0 is a matched pair of 2-1/2" x 2-1/2" x 2" SineSet® precision steel V-blocks from Suburban Tool, engineered for holding round work across two blocks during grinding, inspection and angular setups.

Each block is machined from solid one-piece steel and hardened to Rc 58-60, and the S0-series pair bolts directly to a SineSet® sine plate or compound sine plate of the same series for repeatable angles. Matched within 0.0003", the blocks keep cylindrical parts aligned, with a reversible swing-away clamp on each and side slots for flexible clamping.

  • Matched pair of one-piece steel V-blocks, matched within 0.0003"
  • Hardened to Rc 58-60 for durable toolroom accuracy
  • SineSet® S0 model bolts directly to S0 sine and compound sine plates
  • Reversible, swing-away clamp with each block; side slots for easy clamping
  • Offered in 60° and 90° models from Suburban Tool
  • Made in the USA by Suburban Tool
  • Pairs are matched within 0.0003".
