The SPBM-10 Sine Plate from Suburban Tool is a Mill-Master sine plate designed specifically for use on milling machines. It mounts directly to a machine table with standard T-bolts and nuts, making it fast to set up for accurate angular machining and workholding.
Toolmakers and machinists use this Suburban Tool sine plate for angle setups, fixturing, and layout right on the mill.
- Mounts directly to the machine table with standard T-bolts and nuts.
- Solid, class 35-40 cast iron construction for rigidity and stability.
- T-slots in the top plate accept 1/2" T-bolts or T-nuts for easy clamping of workpieces or vises.
- Includes an edge rail for quick, repeatable workpiece locating.
- Doubles as a standard angle plate in the closed position.
- Made in the USA by Suburban Tool
- Includes edge rail for quick locating of a workpiece.
The SPBM-10 Sine Plate from Suburban Tool is a Mill-Master sine plate designed specifically for use on milling machines. It mounts directly to a machine table with standard T-bolts and nuts, making it fast to set up for accurate angular machining and workholding.
Toolmakers and machinists use this Suburban Tool sine plate for angle setups, fixturing, and layout right on the mill.
- Mounts directly to the machine table with standard T-bolts and nuts.
- Solid, class 35-40 cast iron construction for rigidity and stability.
- T-slots in the top plate accept 1/2" T-bolts or T-nuts for easy clamping of workpieces or vises.
- Includes an edge rail for quick, repeatable workpiece locating.
- Doubles as a standard angle plate in the closed position.
- Made in the USA by Suburban Tool
- Includes edge rail for quick locating of a workpiece.

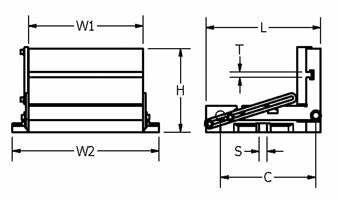

Specifications
| Model | SPBM-10 |
|---|---|
| Length | 12" |
| W1 | 12" |
| W2 | 15-1/2" |
| Height | 8-3/4" |
| C | 10" ±0.001" |
| S | 25/32" |
| T | 9/16" |
| Square & Parallel | ±0.001" |
| Weight | 100 lb |
Contact for Pricing
