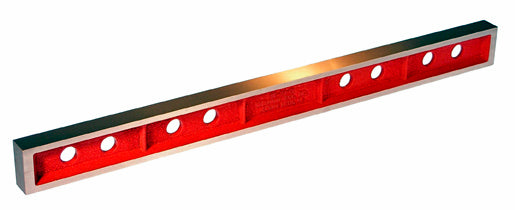

The SE-96-CI-HT is a high-tolerance 96" cast iron straight edge from Suburban Tool, made for toolmakers and QC inspectors who demand an exacting reference over a long span. Made of stress-relieved cast iron for maximum stability, it stays true through heavy toolroom use.
The strong I-beam casting is cored and ribbed so this 96" straight edge stays rigid without excess weight.
- Top and bottom faces precision ground parallel and flat within 0.0001" per 12"
- Cored and ribbed for increased rigidity and reduced weight
- Precision ground surface finishes of 15 RMS or better
- Checks flatness of surfaces, levels machinery, and supports scribing
- Positions work above and parallel to a reference surface
- Made in the USA by Suburban Tool
The SE-96-CI-HT is a high-tolerance 96" cast iron straight edge from Suburban Tool, made for toolmakers and QC inspectors who demand an exacting reference over a long span. Made of stress-relieved cast iron for maximum stability, it stays true through heavy toolroom use.
The strong I-beam casting is cored and ribbed so this 96" straight edge stays rigid without excess weight.
- Top and bottom faces precision ground parallel and flat within 0.0001" per 12"
- Cored and ribbed for increased rigidity and reduced weight
- Precision ground surface finishes of 15 RMS or better
- Checks flatness of surfaces, levels machinery, and supports scribing
- Positions work above and parallel to a reference surface
- Made in the USA by Suburban Tool
Specifications
| Model | SE-96-CI-HT |
|---|---|
| Length | 96" |
| Width | 3" |
| Height | 8" |
| Weight | 400 lb |
Contact for Pricing
