The 9118-10M Taft-Peirce Sine Plate measures 101.6mm x 292mm and is engineered by Suburban Tool for precise angle work in the toolroom and inspection department. Using the sine principle with a stack of gage blocks, this plate lets machinists establish exact angles for surface grinding, layout, and part checking on a compact, rigid working surface.

  • 101.6mm x 292mm work surface sized for smaller precision setups
  • Sets accurate angles from gage blocks for grinding and inspection
  • Solid Taft-Peirce build for repeatable results
  • Ideal for surface grinding, layout, and QC angle checks
  • Precision sine tooling from Suburban Tool
  • Made in the USA by Suburban Tool

Taft-Peirce

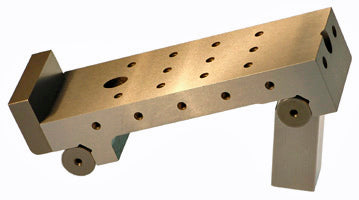

Taft-Peirce Sine Block, 101.6 × 292 mm (9118-10M)

SKU 9118-10M
$5,514.60

The 9118-10M Taft-Peirce Sine Plate measures 101.6mm x 292mm and is engineered by Suburban Tool for precise angle work in the toolroom and inspection department. Using the sine principle with a stack of gage blocks, this plate lets machinists establish exact angles for surface grinding, layout, and part checking on a compact, rigid working surface.

  • 101.6mm x 292mm work surface sized for smaller precision setups
  • Sets accurate angles from gage blocks for grinding and inspection
  • Solid Taft-Peirce build for repeatable results
  • Ideal for surface grinding, layout, and QC angle checks
  • Precision sine tooling from Suburban Tool
  • Made in the USA by Suburban Tool

Specifications

Model 9118-10M
Length 292mm
Width 101.6mm
Height 66.7mm
Tapped Holes M5
Center Distance 250mm ±0.0076mm
Square & Parallel 0.0051mm
Weight 21 lb
$5,514.60

Allow up to 2 days for order processing. Items not in stock are made to order in Auburn Hills, Michigan; we email you the expected date, and they ship separately with their own shipping charge.
