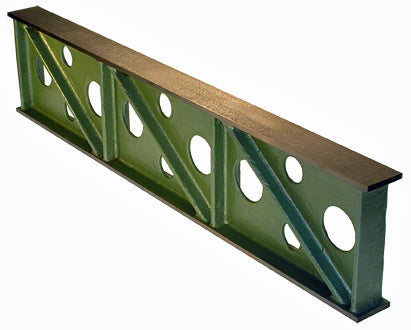

The Taft-Peirce 9168-60S straight edge, 60", from Suburban Tool is a scraped cast iron reference built to stay true across an extra-long 60" span. Model 9168-60S gives toolmakers the rigidity and reach needed for the largest flatness and scraping jobs.
Put the 60" 9168-60S to work checking flatness, guiding scraping, and aligning machine ways and beds.
- Scraped reference surface for a true, precise edge
- Rigid cast iron body that resists deflection and wear
- Long 60" span for the largest surfaces and machine beds
- Ideal for scraping references, setup, and inspection
- Made in the USA with Suburban Tool precision-tooling quality
- I-beam construction for maximum strength.
- Cored & ribbed for balanced lightness & rigidity.
- Made from class 35-40 cast iron.
- Top and bottom surfaces are ground or hand scraped flat, straight, and parallel.
The Taft-Peirce 9168-60S straight edge, 60", from Suburban Tool is a scraped cast iron reference built to stay true across an extra-long 60" span. Model 9168-60S gives toolmakers the rigidity and reach needed for the largest flatness and scraping jobs.
Put the 60" 9168-60S to work checking flatness, guiding scraping, and aligning machine ways and beds.
- Scraped reference surface for a true, precise edge
- Rigid cast iron body that resists deflection and wear
- Long 60" span for the largest surfaces and machine beds
- Ideal for scraping references, setup, and inspection
- Made in the USA with Suburban Tool precision-tooling quality
- I-beam construction for maximum strength.
- Cored & ribbed for balanced lightness & rigidity.
- Made from class 35-40 cast iron.
- Top and bottom surfaces are ground or hand scraped flat, straight, and parallel.
Specifications
| Model | 9168-60S |
|---|---|
| Finish | Scraped |
| Length | 60" |
| Width | 2-1/2" |
| Height | 8" |
| Straightness | 0.0004" |
| Parallel | 0.0003" |
| Weight | 126 lb |
Contact for Pricing
