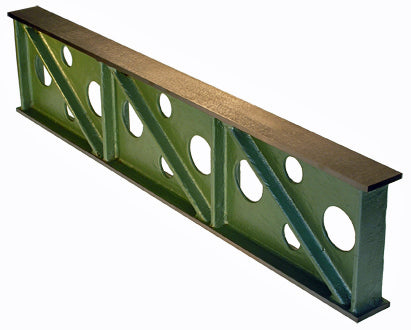

The Taft-Peirce 9168-60G ground straight edge from Suburban Tool is a 60" precision reference finished by grinding for a crisp, true working edge.
At 60 inches it lets toolmakers verify straightness and flatness across long parts, machine ways and surface plates in one pass, making it a QC and toolroom essential.
- Precision-ground 60" edge for reliable straightness and flatness checks
- Long reach spans machine beds and large workpieces in a single lay
- Well suited to inspection, layout and setup on the surface plate
- Legacy Taft-Peirce precision, delivered by Suburban Tool
- Made in the USA by Suburban Tool
- I-beam construction for maximum strength.
- Cored & ribbed for balanced lightness & rigidity.
- Made from class 35-40 cast iron.
- Top and bottom surfaces are ground or hand scraped flat, straight, and parallel.
The Taft-Peirce 9168-60G ground straight edge from Suburban Tool is a 60" precision reference finished by grinding for a crisp, true working edge.
At 60 inches it lets toolmakers verify straightness and flatness across long parts, machine ways and surface plates in one pass, making it a QC and toolroom essential.
- Precision-ground 60" edge for reliable straightness and flatness checks
- Long reach spans machine beds and large workpieces in a single lay
- Well suited to inspection, layout and setup on the surface plate
- Legacy Taft-Peirce precision, delivered by Suburban Tool
- Made in the USA by Suburban Tool
- I-beam construction for maximum strength.
- Cored & ribbed for balanced lightness & rigidity.
- Made from class 35-40 cast iron.
- Top and bottom surfaces are ground or hand scraped flat, straight, and parallel.
Specifications
| Model | 9168-60G |
|---|---|
| Finish | Ground |
| Length | 60" |
| Width | 2-1/2" |
| Height | 8" |
| Straightness | 0.0004" |
| Parallel | 0.0003" |
| Weight | 126 lb |
Contact for Pricing
