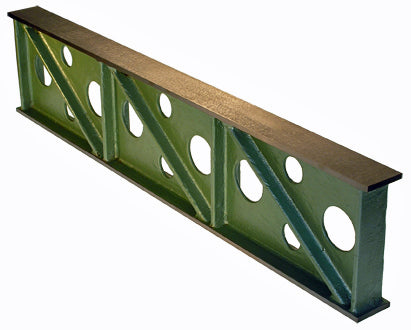

The Taft-Peirce 9168-48S straight edge, 48", from Suburban Tool is a scraped cast iron reference with I-beam construction, built to stay true across a long 48" span. Model 9168-48S delivers the rigidity toolmakers need for large-scale flatness and scraping work.
Put the 48" 9168-48S to work checking flatness, guiding scraping, and aligning machine ways and beds.
- Scraped reference surface for a true, precise edge
- I-beam cast iron construction for maximum rigidity
- 48" length spans large surfaces and machine beds
- Ideal for scraping references, setup, and inspection
- Made in the USA with Suburban Tool precision-tooling quality
- Cored & ribbed for balanced lightness & rigidity.
- Made from class 35-40 cast iron.
- Top and bottom surfaces are ground or hand scraped flat, straight, and parallel.
The Taft-Peirce 9168-48S straight edge, 48", from Suburban Tool is a scraped cast iron reference with I-beam construction, built to stay true across a long 48" span. Model 9168-48S delivers the rigidity toolmakers need for large-scale flatness and scraping work.
Put the 48" 9168-48S to work checking flatness, guiding scraping, and aligning machine ways and beds.
- Scraped reference surface for a true, precise edge
- I-beam cast iron construction for maximum rigidity
- 48" length spans large surfaces and machine beds
- Ideal for scraping references, setup, and inspection
- Made in the USA with Suburban Tool precision-tooling quality
- Cored & ribbed for balanced lightness & rigidity.
- Made from class 35-40 cast iron.
- Top and bottom surfaces are ground or hand scraped flat, straight, and parallel.
Specifications
| Model | 9168-48S |
|---|---|
| Finish | Scraped |
| Length | 48" |
| Width | 2-1/2" |
| Height | 8" |
| Straightness | 0.0003" |
| Parallel | 0.0002" |
| Weight | 100 lb |
Contact for Pricing
