Suburban Tool Giant T-Slotted Webbed Angle Plate

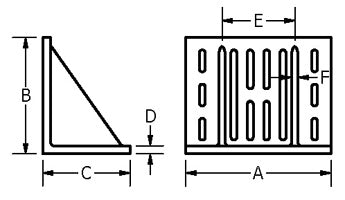

GAW-DWG Suburban Tool Giant Slotted Webbed Angle Plate Drawing

The GAT-364896 Giant Angle Plate from Suburban Tool is built for the biggest workholding challenges in the shop, mounting large and heavy components square to the machine table for machining, layout, and inspection. Its precision reference faces give toolmakers a trustworthy perpendicular datum where accuracy can't be compromised.

From the grinding department to the layout bench, this giant angle plate keeps oversized parts stable and true throughout the setup.

  • Massive, rigid body resists deflection under extreme loads
  • Accurate 90-degree faces establish a solid perpendicular reference
  • Squares large workpieces for milling, grinding, and drilling
  • Dependable for inspection and layout of big components
  • Precision-engineered workholding from Suburban Tool
  • Made in the USA by Suburban Tool

Suburban Tool Inc.

Giant Angle Plate (GAT-364896)

SKU GAT-364896
Contact for Pricing

The GAT-364896 Giant Angle Plate from Suburban Tool is built for the biggest workholding challenges in the shop, mounting large and heavy components square to the machine table for machining, layout, and inspection. Its precision reference faces give toolmakers a trustworthy perpendicular datum where accuracy can't be compromised.

From the grinding department to the layout bench, this giant angle plate keeps oversized parts stable and true throughout the setup.

  • Massive, rigid body resists deflection under extreme loads
  • Accurate 90-degree faces establish a solid perpendicular reference
  • Squares large workpieces for milling, grinding, and drilling
  • Dependable for inspection and layout of big components
  • Precision-engineered workholding from Suburban Tool
  • Made in the USA by Suburban Tool

Specifications

Model GAT-364896
Finish Machined
Length 48"
Width 36"
Height 96"
Weight 9000 lb

Contact for Pricing

📞 Call (248) 391-7800 ✉ Email for a Quote
