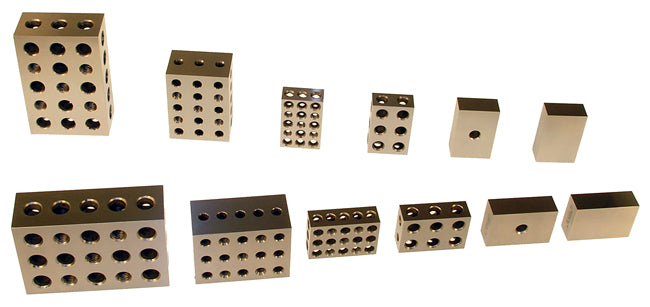

The Suburban Tool B-123-H23-M is a precision 1-2-3 block set measuring 1" x 2" x 3", supplied as a matched pair in hardened steel and ground on all six sides. With 23 holes featuring 3/8-16 tapped holes and matching clearance, this pair supports screw mounting and a wide range of precision set-ups.

Delivered in a fitted wooden box, the B-123-H23-M from Suburban Tool is built for layout, setup, workholding and inspection in the toolroom.

  • Matched pair of hardened steel blocks for balanced, repeatable work
  • Ground on all six sides for true, square and parallel faces
  • 23 holes with 3/8-16 tapped holes and matching clearance
  • Screw-mount for angle plates and other precision fixtures
  • Furnished in a fitted wooden storage box
  • Made in the USA by Suburban Tool

Available with No Certification, Short Form, or Long Form Certification.

Suburban Tool Inc.

1-2-3 Block (Metric) (B-123-H23-M)

SKU B-123-H23-M
$308.70

The Suburban Tool B-123-H23-M is a precision 1-2-3 block set measuring 1" x 2" x 3", supplied as a matched pair in hardened steel and ground on all six sides. With 23 holes featuring 3/8-16 tapped holes and matching clearance, this pair supports screw mounting and a wide range of precision set-ups.

Delivered in a fitted wooden box, the B-123-H23-M from Suburban Tool is built for layout, setup, workholding and inspection in the toolroom.

  • Matched pair of hardened steel blocks for balanced, repeatable work
  • Ground on all six sides for true, square and parallel faces
  • 23 holes with 3/8-16 tapped holes and matching clearance
  • Screw-mount for angle plates and other precision fixtures
  • Furnished in a fitted wooden storage box
  • Made in the USA by Suburban Tool

Available with No Certification, Short Form, or Long Form Certification.

Specifications

Model B-123-H23-M
Single or Pair Pair
Holes 23
Square 0.0001"/1"
Flat & Parallel 0.0002"
Size (Inches) 1" x 2" x 3" +0.0001"/+0.0003"
Weight 3 lb
$308.70

Add a certification?

The certificate is added to your cart as a separate line for this tool.

Allow up to 2 days for order processing. Items not in stock are made to order in Auburn Hills, Michigan; we email you the expected date, and they ship separately with their own shipping charge.

∼ Made in Auburn Hills, Michigan ∼ America’s Toolmaker for 60+ Years ∼ Precision Workholding & Metrology ∼ Made in Auburn Hills, Michigan ∼ America’s Toolmaker for 60+ Years ∼ Precision Workholding & Metrology ∼ Made in Auburn Hills, Michigan ∼ America’s Toolmaker for 60+ Years ∼ Precision Workholding & Metrology ∼ Made in Auburn Hills, Michigan ∼ America’s Toolmaker for 60+ Years ∼ Precision Workholding & Metrology ∼ Made in Auburn Hills, Michigan ∼ America’s Toolmaker for 60+ Years ∼ Precision Workholding & Metrology ∼ Made in Auburn Hills, Michigan ∼ America’s Toolmaker for 60+ Years ∼ Precision Workholding & Metrology ∼ Made in Auburn Hills, Michigan ∼ America’s Toolmaker for 60+ Years ∼ Precision Workholding & Metrology ∼ Made in Auburn Hills, Michigan ∼ America’s Toolmaker for 60+ Years ∼ Precision Workholding & Metrology ∼ Made in Auburn Hills, Michigan ∼ America’s Toolmaker for 60+ Years ∼ Precision Workholding & Metrology ∼ Made in Auburn Hills, Michigan ∼ America’s Toolmaker for 60+ Years ∼ Precision Workholding & Metrology ∼ Made in Auburn Hills, Michigan ∼ America’s Toolmaker for 60+ Years ∼ Precision Workholding & Metrology ∼ Made in Auburn Hills, Michigan ∼ America’s Toolmaker for 60+ Years ∼ Precision Workholding & Metrology ∼ Made in Auburn Hills, Michigan ∼ America’s Toolmaker for 60+ Years ∼ Precision Workholding & Metrology ∼ Made in Auburn Hills, Michigan ∼ America’s Toolmaker for 60+ Years ∼ Precision Workholding & Metrology ∼ Made in Auburn Hills, Michigan ∼ America’s Toolmaker for 60+ Years ∼ Precision Workholding & Metrology ∼ Made in Auburn Hills, Michigan ∼ America’s Toolmaker for 60+ Years ∼ Precision Workholding & Metrology ∼ Made in Auburn Hills, Michigan ∼ America’s Toolmaker for 60+ Years ∼ Precision Workholding & Metrology ∼ Made in Auburn Hills, Michigan ∼ America’s Toolmaker for 60+ Years ∼ Precision Workholding & Metrology ∼ Made in Auburn Hills, Michigan ∼ America’s Toolmaker for 60+ Years ∼ Precision Workholding & Metrology ∼ Made in Auburn Hills, Michigan ∼ America’s Toolmaker for 60+ Years ∼ Precision Workholding & Metrology

The Suburban Tool B-123-H23-M is a precision 1-2-3 block set measuring 1" x 2" x 3", supplied as a matched pair in hardened steel and ground on all six sides. With 23 holes featuring 3/8-16 tapped holes and matching clearance, this pair supports screw mounting and a wide range of precision set-ups.

Delivered in a fitted wooden box, the B-123-H23-M from Suburban Tool is built for layout, setup, workholding and inspection in the toolroom.

  • Matched pair of hardened steel blocks for balanced, repeatable work
  • Ground on all six sides for true, square and parallel faces
  • 23 holes with 3/8-16 tapped holes and matching clearance
  • Screw-mount for angle plates and other precision fixtures
  • Furnished in a fitted wooden storage box
  • Made in the USA by Suburban Tool

Available with No Certification, Short Form, or Long Form Certification.
