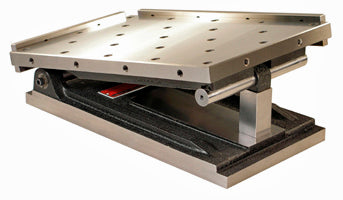

The B-10-SP 7-3/4" × 12-1/2" Sine Plate is a Master-Sine precision tool from Suburban Tool, engineered for accurate gage-block angle setups in surface grinding, inspection, and toolroom work. Made of steel hardened to Rc 58-60, it delivers lasting accuracy under daily use.

Its 5/16-18 tapped holes make clamping and fixturing simple, while the hardened, ground-and-lapped roll bar ensures dependable, repeatable positioning.

  • Roomy 7-3/4" × 12-1/2" surface supports a wide range of parts
  • Steel hardened to Rc 58-60 for durability and wear resistance
  • 5/16-18 tapped holes for convenient part clamping and fixturing
  • Roll bar ground and lapped for straightness and roundness
  • Exclusive internal locking device pulls the top plate down without distortion
  • Made in the USA by Suburban Tool
  • Swivel block provides full face contact with gage blocks, keeping them securely in place.
  • Side and back rail included.

Available with No Certification, Short Form, or Long Form Certification.

Suburban Tool Inc.

Sine Plate, 7-3/4" × 12-1/2" (B-10-SP)

SKU B-10-SP
$5,327.70

The B-10-SP 7-3/4" × 12-1/2" Sine Plate is a Master-Sine precision tool from Suburban Tool, engineered for accurate gage-block angle setups in surface grinding, inspection, and toolroom work. Made of steel hardened to Rc 58-60, it delivers lasting accuracy under daily use.

Its 5/16-18 tapped holes make clamping and fixturing simple, while the hardened, ground-and-lapped roll bar ensures dependable, repeatable positioning.

  • Roomy 7-3/4" × 12-1/2" surface supports a wide range of parts
  • Steel hardened to Rc 58-60 for durability and wear resistance
  • 5/16-18 tapped holes for convenient part clamping and fixturing
  • Roll bar ground and lapped for straightness and roundness
  • Exclusive internal locking device pulls the top plate down without distortion
  • Made in the USA by Suburban Tool
  • Swivel block provides full face contact with gage blocks, keeping them securely in place.
  • Side and back rail included.

Available with No Certification, Short Form, or Long Form Certification.

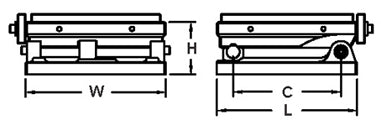

Specifications

Model B-10-SP
Length 12-1/2"
Width 7-3/4"
Height 2-7/8"
C 10" ±0.0002"
Square & Parallel 0.0003"
Weight 55 lb
$5,327.70

Add a certification?

The certificate is added to your cart as a separate line for this tool.

Allow up to 2 days for order processing. Items not in stock are made to order in Auburn Hills, Michigan; we email you the expected date, and they ship separately with their own shipping charge.
