The Suburban Tool V-612-S2 precision vise pairs a generous 8" jaw capacity with a solid, one-piece body that bolts directly into the SineSet S2 system for precise angle work. Its movable jaw pulls into the base at 45 to 60 degrees, producing maximum holding and hold-down force so even large, heavy parts stay flat and seated during grinding and inspection.

It is built for toolrooms and QC labs that hold big parts to tight angles.

  • Angled center channel provides extra jaw capacity for wide workpieces.
  • Ratchet mechanism with notched pockets and a one-piece drawbar for repeatable clamping.
  • Jaw opens and closes without unbolting the vise from the work surface.
  • End pockets provide convenient clamping to the table or sine plate.
  • SineSet S2 model bolts directly to a matching sine plate or compound sine plate of the same series.
  • Made in the USA by Suburban Tool

Suburban Tool Inc.

Precision Vise, 8" Jaw Capacity (V-612-S2)

SKU V-612-S2
$2,492.70

The Suburban Tool V-612-S2 precision vise pairs a generous 8" jaw capacity with a solid, one-piece body that bolts directly into the SineSet S2 system for precise angle work. Its movable jaw pulls into the base at 45 to 60 degrees, producing maximum holding and hold-down force so even large, heavy parts stay flat and seated during grinding and inspection.

It is built for toolrooms and QC labs that hold big parts to tight angles.

  • Angled center channel provides extra jaw capacity for wide workpieces.
  • Ratchet mechanism with notched pockets and a one-piece drawbar for repeatable clamping.
  • Jaw opens and closes without unbolting the vise from the work surface.
  • End pockets provide convenient clamping to the table or sine plate.
  • SineSet S2 model bolts directly to a matching sine plate or compound sine plate of the same series.
  • Made in the USA by Suburban Tool

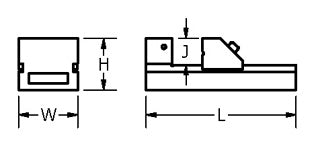

Specifications

Model V-612-S2
SineSet® Series S2
Length 12"
Width 6"
Height 3-7/16"
J 1-11/16"
Jaw Capacity 8"
Square & Parallel 0.0003"
Weight 41 lb
$2,492.70
