The Suburban Tool V-612 precision vise delivers a wide 8" jaw capacity from a solid, one-piece body built to anchor the largest toolroom parts on the grinder, mill, or inspection bench. As the movable jaw closes, it pulls into the base at 45 to 60 degrees to insure maximum holding power and hold-down force, eliminating tilting and lifting on heavy setups.

Made in the USA, the V-612 is a workhorse for demanding precision workholding.

  • Angled center channel provides extra jaw capacity for large, bulky parts.
  • Ratchet mechanism with notched pockets and a one-piece drawbar for firm, repeatable clamping.
  • Jaw can be opened and closed without unbolting the vise from the work surface.
  • End pockets provide convenient clamping down to the machine table.
  • Horizontal and vertical vees in the movable jaw hold round and square stock securely.

Suburban Tool Inc.

Precision Vise, 8" Jaw Capacity (V-612)

SKU V-612
$2,312.10

The Suburban Tool V-612 precision vise delivers a wide 8" jaw capacity from a solid, one-piece body built to anchor the largest toolroom parts on the grinder, mill, or inspection bench. As the movable jaw closes, it pulls into the base at 45 to 60 degrees to insure maximum holding power and hold-down force, eliminating tilting and lifting on heavy setups.

Made in the USA, the V-612 is a workhorse for demanding precision workholding.

  • Angled center channel provides extra jaw capacity for large, bulky parts.
  • Ratchet mechanism with notched pockets and a one-piece drawbar for firm, repeatable clamping.
  • Jaw can be opened and closed without unbolting the vise from the work surface.
  • End pockets provide convenient clamping down to the machine table.
  • Horizontal and vertical vees in the movable jaw hold round and square stock securely.

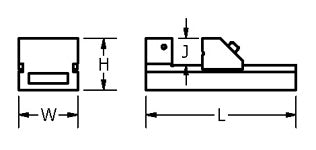

Specifications

Model V-612
SineSet® Series —
Length 12"
Width 6"
Height 3-7/16"
J 1-11/16"
Jaw Capacity 8"
Square & Parallel 0.0003"
Weight 41 lb
$2,312.10

Add a certification?

The certificate is added to your cart as a separate line for this tool.

Allow up to 2 days for order processing. Items not in stock are made to order in Auburn Hills, Michigan; we email you the expected date, and they ship separately with their own shipping charge.
