The Suburban Tool V-237-J precision vise offers a 4-1/2" jaw capacity in a solid, one-piece body built for demanding workholding on the surface grinder, in the toolroom and during inspection. As a J model, it adds vees in the tops of the jaws and 1/8" x 1/8" steps at the top inside face for versatile part gripping.

  • Solid one-piece body delivers the rigidity toolmakers rely on for precision work.
  • Ratchet mechanism with notched pockets and a one-piece drawbar for secure clamping.
  • Movable jaw pulls into the base at 45 to 60 degrees for maximum holding power and hold-down force, eliminating tilting and lifting.
  • Horizontal and vertical vees in the movable jaw, plus end pockets for convenient clamping.
  • Jaw opens and closes without unbolting the vise from the work surface.
  • Made in the USA.

Suburban Tool Inc.

Precision Vise, 4-1/2" Jaw Capacity (V-237-J)

SKU V-237-J
$1,001.70

The Suburban Tool V-237-J precision vise offers a 4-1/2" jaw capacity in a solid, one-piece body built for demanding workholding on the surface grinder, in the toolroom and during inspection. As a J model, it adds vees in the tops of the jaws and 1/8" x 1/8" steps at the top inside face for versatile part gripping.

  • Solid one-piece body delivers the rigidity toolmakers rely on for precision work.
  • Ratchet mechanism with notched pockets and a one-piece drawbar for secure clamping.
  • Movable jaw pulls into the base at 45 to 60 degrees for maximum holding power and hold-down force, eliminating tilting and lifting.
  • Horizontal and vertical vees in the movable jaw, plus end pockets for convenient clamping.
  • Jaw opens and closes without unbolting the vise from the work surface.
  • Made in the USA.

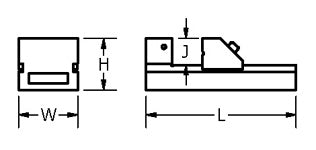

Specifications

Model V-237-J
SineSet® Series —
Length 7-1/2"
Width 3"
Height 2-5/8"
J 1-5/16"
Jaw Capacity 4-1/2"
Square & Parallel 0.0002"
Weight 12 lb
$1,001.70
