SOLID BODY CAST IRON V-BLOCKS
PROUDLY MADE IN OUR FACILITY IN THE U.S.A.
Made in the USA
ASK OUR COMPETITION IF THEY CAN SAY THE SAME.

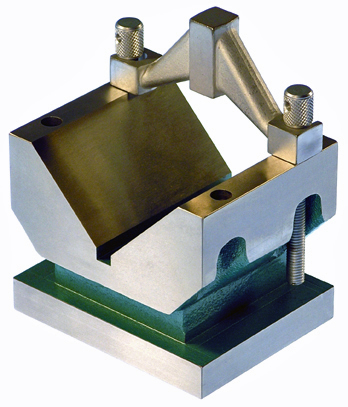

9132 Solid Body Cast Iron V-Block
  • Made from class 35-40 cast iron.

  • Extra-heavy body design combines a massive section for absolute rigidity and accuracy.  An all-around base ledge allows c-clamps, parallel clamps and machine table straps to be applied in any position.

  • Reversible work clamps do not interfere, when vee blocks are used on sides or ends, and may be swung aside or removed.

  • Each v-block is provided with one clamp and two clamping screws.

  • Available as a single block or in pairs matched within 0.0003" and numbered for identification.
MODEL # SINGLE
or PAIR
LENGTH WIDTH HEIGHT VEE
CAPACITY
VEE
CENTRAL,
SQUARE &
PARALLEL
SIDES
SQUARE &
PARALLEL
WT (#) PRICE
(US$)
9132 SINGLE 4" 5" 4" 3-7/8" 0.0003" 0.0002" 17
$ 906
9132-M PAIR 4" 5" 4" 3-7/8" 0.0003" 0.0002" 34
$ 1,505

ITEMS WITH A PRICE FOLLOWED BY A  T  MUST SHIP BY TRUCK


SPECIFICATIONS & PRICES SUBJECT TO CHANGE WITHOUT NOTICE
