CUSTOM PALLET FIXTURES
PROUDLY MADE IN OUR FACILITY IN THE U.S.A.
Made in the USA
ASK OUR COMPETITION IF THEY CAN SAY THE SAME.


You may require pallet fixtures, also known as tombstones, tombstone fixtures or tooling blocks, in sizes or shapes that are not shown on this website.  We can supply custom built tools to help you with your production needs.

This worksheet is for specifying a custom order pallet fixture.  You'll find it useful for taking the proper measurements and having the information at hand, when requesting a quote on a special pallet fixture.

Using the labeled dimensions in the diagrams below, fill in the table with the type of column required and the appropriate dimensions for your custom order fixture.  Use the "notes" area for any explanations you feel are needed to complete the description of the column you want us to build.

If the custom order is a shape other than the ones shown, please email or fax a sketch or drawing.  Feel free to send any additional attachments you think will help us with your quote.
Custom Tombstone for Wen Technology

CUSTOM TOMBSTONE MANUFACTURED FOR
WEN TECHNOLOGY, INC., RALEIGH, NC
TAP-483098 Custom Giant T-Slotted Webbed Angle Plate
Any Size & Shape
Custom 4-Windowed Workholding Fixture
Company Name
Contact Name
Address
City                    State            Zip
E-Mail            Country
Phone                              Fax
COLUMN TYPE >   NOTES
DIM SIZE DIM SIZE
A G
B H
C I
D J
E K
F L

T-SLOT  TYPE

Custom T-Slot Type Pallet Fixture Drawing
T  TYPE

Custom T-Type Pallet Fixture Drawing
WINDOW  TYPE

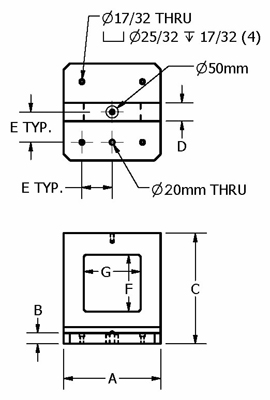

Custom Window Type Pallet Fixture Drawing
SQUARE  TYPE

Custom Square Column Pallet Fixture Drawing
HEXAGONAL  TYPE

Custom Hexagonal Type Pallet Fixture Drawing
OCTAGONAL  TYPE

Custom Octagonal Column Pallet Fixture Drawing
RECTANGULAR  TYPE

Custom Rectangular Column Pallet Fixture Drawing
