COLLET-MASTER™ SPIN INDEX FIXTURE
PROUDLY MADE IN OUR FACILITY IN THE U.S.A.
Made in the USA
ASK OUR COMPETITION IF THEY CAN SAY THE SAME.


CM-5C Collet-Master Index Fixture - Front View
CM-5C - Left-Front View
CM-5C Collet-Master Index Fixture - Rear View
CM-5C - Right-Rear View

CM-5C Collet-Master Index Fixture Drawing CM-5C-FVB Optional Faceplate & V-Block for CM-5C Collet-Master Index Fixture
Optional CM-5C-FVB
Faceplate & V-Block
  • 48 position index plate provides a hard stop every 7-1/2° ±45 arc seconds.

  • Spindle rides in two sealed, pre-loaded ball bearings.

  • Maximum spindle runout is 0.0001".

  • Drawbar and fitted wooden case included.

  • Optional faceplate & v-block (CM-5C-FVB) available for eccentric forms.
MODEL # COLLET
CAPACITY
THROUGH
HOLE
C L1 L2 W1 W2 H SQUARE &
PARALLEL
WT(#) PRICE
(US$)
CM-5C ALL 5C 1-1/4" 3-5/8" 3-13/32" 6-13/32" 3-3/4" 4-13/32" 5-9/16" 0.0002" 9
$ 1,290
MODEL # FACEPLATE DIAMETER THRU HOLE V-BLOCK CAPACITY WT(#) PRICE
(US$)
CM-5C-FVB 4-7/8" 3/4" 1-5/8" 15
$ 609


PEOPLE WHO BOUGHT INDEX FIXTURES
ALSO BOUGHT COLLET SETS
Optional Collet Sets

OPTIONAL COLLET SETS
(Click on Picture)


Need Repair Parts? Click below:

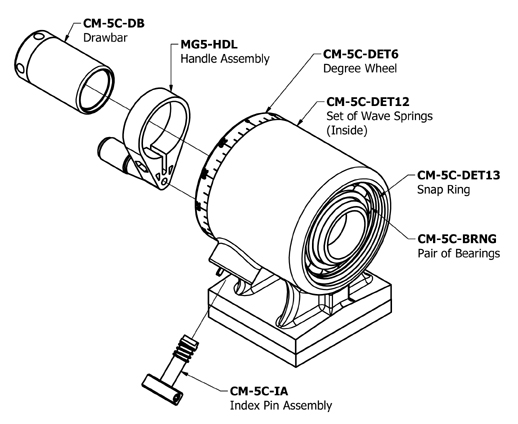

CM-5C Parts List
