MAGNA-SINE™ MAGNETIC COMPOUND SINE PLATES
FORMERLY BY EX-CELL-0 / ROBBINS
PROUDLY MADE IN OUR FACILITY IN THE U.S.A.
Made in the USA
ASK OUR COMPETITION IF THEY CAN SAY THE SAME.


A-5-MS Magna-Sine Magnetic Compouns Sine Plate
A-5-MS
A-10-MS Magna-Sine Magnetic Compound Sine Plate
A-10-MS

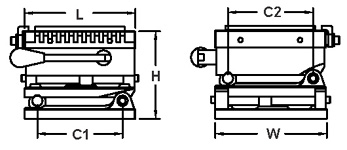

Magna-Sine Magnetic Compound Sine Plate Drawing
  • MAGNA-SINE™ magnetic sine plates are equipped with extremely powerful ceramic magnet chucks.  Having stationary magnets in the top plate and a movable magnet core, these chucks provide an average holding power of up to 100 pounds per square inch. This is nearly twice the holding power of a standard chuck!

  • The chucks provide maximum holding of both small & large parts due to a combination fine / standard pole spacing.

  • All but the chuck is made of steel, hardened to Rc 58-60.

  • The swivel block provides full face contact with gage blocks keeping them securely in place.

  • The gage block & hinge rolls are ground and lapped for straightness and roundness.

  • An exclusive locking device inside the hinge roll provides a positive lock with an expanding action.  Both screws lock toward the front of the unit, pulling the top plate down on the set-up gage blocks without distortion.

  • The angular accuracy is guaranteed to be within 5 seconds of arc up to 15°, 10 seconds up to 30° and 15 seconds up to 45°.

  • Side and back rails are included.

  • Available hinged as STANDARD (as shown) or OPPOSITE-HAND.
MODEL # L W H C1 C2 SQUARE &
PARALLEL
WT(#) PRICE
(US$)
A-5-MS 6-1/2" 6-1/2" 5-1/4" 5" ±0.0002" 5" ±0.0002" 0.0002" 45
$ 4,548
A-10-MS 12-1/2" 6-1/2" 6-1/8" 10" ±0.0002" 5" ±0.0002" 0.0003" 100
$ 5,775  T
A-15-MS 18-1/4" 6-3/4" 6-7/8" 15" ±0.0002" 5" ±0.0002" 0.0004" 200
$ 11,509  T
PRODUCT CERTIFICATIONS
Long Form Certification
  • A form showing the advertised sizes and/or tolerances.

  • The actual measurements taken of those sizes and/or tolerances.

  • A statement that the standards used to measure the tool are traceable to the National Institute of Standards and Technology.
Short Form Certification
  • A form certifying that the specified product met manufacturer's specifications before leaving our factory.
MODEL # DESCRIPTION WT(#) PRICE
(US$)
CERT-LONG Certification - Long 0
$ 98
CERT-SHORT Certification - Short 0
0
SINE PLATE HELP
HOW TO USE A COMPOUND SINE PLATE

Free Online Calculator for Setting
a Sine Plate or Sine Bar

How to Set a Sine Plate or Sine Bar


Sine Plate Comparison
Suburban vs EX-CELL-O vs Taft-Peirce
Need Repair Parts? Click below:
Click MODEL # Below To View Repair Parts
A-5-MS
A-10-MS
A-15-MS
