STEEL STRAIGHT EDGES
PROUDLY MADE IN OUR FACILITY IN THE U.S.A.
U.S. Flag
ASK OUR COMPETITION IF THEY CAN SAY THE SAME.

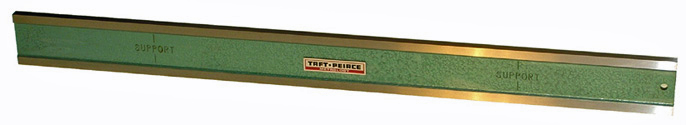

9169-24 Steel Straight Edge
9169-24
  • Made of heat treated alloy steel.

  • Edges precision ground, parallel and straight.

  • All sizes are proportioned for proper balance between rigidity and weight.

  • Sizes 24" and longer have marked support points which should be used to minimize deflection due to gravity.

  • When not in use, these straight edges should be hung vertically by the hole provided in one end.
MODEL # LENGTH WIDTH HEIGHT STRAIGHT &
PARALLEL		 WT (#) PRICE
(US$)
9169-12 12" 1/4" 1-1/2" 0.0001" 3
$ 490
9169-24 24" 5/16" 2" 0.0002" 6
$ 712
9169-36 36" 3/8" 2-1/2" 0.0003" 9
$ 935
9169-48 48" 7/16" 3" 0.0004" 17
$ 1,190  T
9169-60 60" 1/2" 3-1/2" 0.0005" 38
$ 1,590  T
9169-72 72" 1/2" 4" 0.0006" 50
$ 2,123  T

PRICES FOLLOWED BY A  T  MUST SHIP BY TRUCK


SPECIFICATIONS & PRICES SUBJECT TO CHANGE WITHOUT NOTICE
