PRECISION GROUND STEEL ANGLE PLATES
PROUDLY MADE IN OUR FACILITY IN THE U.S.A.
U.S. Flag
ASK OUR COMPETITION IF THEY CAN SAY THE SAME.


AP-443-H Precision Ground Steel Angle Plate
AP-443-H		 AP-443-NH Precision Ground Steel Angle Plate
AP-443-NH		 AP-334-S0 SineSet Precision Ground Steel Angle Plate
AP-334-S0		 AP-333 Precision Ground Steel Stepped Angle Plate
AP-333

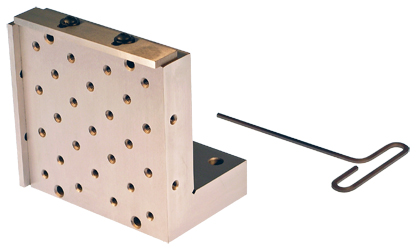

AP-664-S1 SineSet 90 Degree Conversion Plate
AP-664-S1		 AP-446-S2 SineSet Precision Ground Steel Angle Plate

AP-446-S2		 AP-444-S1 SineSet Precision Ground Steel Angle Plate
AP-444-S1
  • Solid, one-piece angle plates are made from hardened steel.

  • AP-443-H & AP-443-NH are square and parallel within 0.0001".  All other models are held to 0.0002".

  • AP-443-NH has no holes. All others are furnished with tapped holes.

  • SineSet® models are made to bolt directly to sine plates and compound sine plates of the same series.

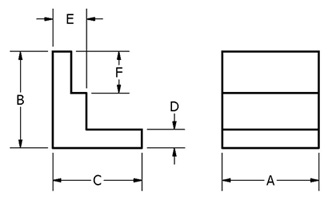

Precision Ground Steel Angle Plate Drawing
MODEL # SINGLE
or PAIR		 SineSet®
SERIES		 A B C D E F HOLES WT(#) PRICE
(US$)
SineSet® COMPATIBLE
AP-334-S0 SINGLE S0 3" 4" 3" 1" -- -- (13) 1/4-20
(4) 5/16" x 7/16" C'BORE		 6
$ 205
AP-334-M-S0 PAIR S0 3" 4" 3" 1" -- -- (13) 1/4-20
(4) 5/16" x 7/16" C'BORE		 11
$ 517
AP-444-S1 SINGLE S1 4" 4" 4" 1-1/4" -- -- (13) 1/4-20
(4) 5/16" x 7/16" C'BORE		 10
$ 312
AP-444-M-S1 PAIR S1 4" 4" 4" 1-1/4" -- -- (13) 1/4-20
(4) 5/16" x 7/16" C'BORE		 19
$ 686
AP-446-S2 SINGLE S2 4" 6" 4" 1-1/4" -- -- (14) 3/8-16
(4) 7/16" x 5/8" C'BORE		 14
$ 384
AP-446-M-S2 PAIR S2 4" 6" 4" 1-1/4" -- -- (14) 3/8-16
(4) 7/16" x 5/8" C'BORE		 27
$ 846
AP-664-S1 SINGLE S1 6" 6" 4" 1-1/4" -- -- (33) 1/4-20
(6) 5/16" x 7/16" C'BORE		 20
$ 579
AP-664-M-S1 PAIR S1 6" 6" 4" 1-1/4" -- -- (33) 1/4-20
(6) 5/16" x 7/16" C'BORE		 39
$ 1,311
NOT SineSet® COMPATIBLE
AP-333 SINGLE -- 3" 2-3/4" 3" 9/16" 1" 1-1/4" (24) 1/4-20 5
$ 297
AP-333-M PAIR -- 3" 2-3/4" 3" 9/16" 1" 1-1/4" (24) 1/4-20 9
$ 668
AP-443-H SINGLE -- 4" 4" 3" 1-1/8" -- -- (31) 1/4-20
(2) 19/32" x 7/16" C'BORE		 9
$ 547
AP-443-NH SINGLE -- 4" 4" 3" 1-1/8" -- -- -- 9
$ 312
AP-443-NH-M PAIR -- 4" 4" 3" 1-1/8" -- -- -- 17
$ 777

PRICES FOLLOWED BY A  T  MUST SHIP BY TRUCK


SPECIFICATIONS & PRICES SUBJECT TO CHANGE WITHOUT NOTICE
 SPECIAL SIZES AVAILABLE UPON REQUEST
