PERMANENT MAGNETIC SURFACE GRINDER CHUCKS
PROUDLY MADE IN OUR FACILITY IN THE U.S.A.
Made in the USA
ASK OUR COMPETITION IF THEY CAN SAY THE SAME.

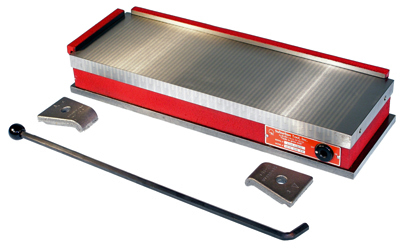

MCB-618-FP Permanent Magnetic Surface Grinder Chuck
MCB-618-FP



  • Ceramic magnets provide superior holding power that never fades.

  • Sealed against dirt and liquids.

  • Front-mounted handle is removable to eliminate interference.

  • Handle, back rail, side rail and two clamps included.

  • 8" x 15" models & larger have a non-removable handle.

  • STANDARD POLE:  1/4" poles and 1/8" separators produce deep flux lines for holding large and thick parts.

  • FINE POLE (marked -FP):  1/8" poles and 1/8" separators produce shallow flux lines for holding small and thin parts.
MODEL # POLE
SPACING		 LENGTH WIDTH HEIGHT WT. (#) PRICE
(US$)
MCB-47 STANDARD 7-1/2" 4" 2-5/8" 19
$ 1,172
MCB-47-FP FINE 7-1/2" 4" 2-5/8" 19
$ 1,253
MCB-510 STANDARD 10-1/2" 5" 2-5/8" 35
$ 1,558
MCB-510-FP FINE 10-1/2" 5" 2-5/8" 35
$ 1,799
MCB-612 STANDARD 12-1/2" 6" 2-5/8" 45
$ 2,083
MCB-612-FP FINE 12-1/2" 6" 2-5/8" 47
$ 2,385
MCB-614 STANDARD 14-1/2" 6" 2-5/8" 55
$ 2,334
MCB-614-FP FINE 14-1/2" 6" 2-5/8" 55
$ 2,630
MCB-618 STANDARD 18-1/2" 6" 2-5/8" 69
$ 2,766
MCB-618-FP FINE 18-1/2" 6" 2-5/8" 70
$ 3,175
MCB-812 STANDARD 12-1/2" 8" 2-5/8" 63
$ 2,613
MCB-812-FP FINE 12-1/2" 8" 2-5/8" 63
$ 2,985
MCB-815 STANDARD 15-1/2" 8" 2-5/8" 88
$ 3,157  T
MCB-815-FP FINE 15-1/2" 8" 2-5/8" 89
$ 3,585  T
MCB-818 STANDARD 18-1/2" 8" 2-5/8" 119
$ 3,819  T
MCB-818-FP FINE 18-1/2" 8" 2-5/8" 120
$ 4,241  T
MCB-824 STANDARD 24-1/2" 8" 2-5/8" 126
$ 5,099  T
MCB-824-FP FINE 24-1/2" 8" 2-5/8" 126
$ 5,736  T
MCB-1015 STANDARD 15-1/2" 10" 2-5/8" 111
$ 4,948  T
MCB-1015-FP FINE 15-1/2" 10" 2-5/8" 111
$ 5,404  T
MCB-1018 STANDARD 18-1/2" 10" 2-5/8" 134
$ 5,937  T
MCB-1018-FP FINE 18-1/2" 10" 2-5/8" 134
$ 6,359  T
MCB-1024 STANDARD 24-1/2" 10" 2-5/8" 178
$ 8,344  T
MCB-1024-FP FINE 24-1/2" 10" 2-5/8" 178
$ 8,776  T
MCB-1212 STANDARD 12-1/2" 12" 2-5/8" 107
$ 4,014  T
MCB-1212-FP FINE 12-1/2" 12" 2-5/8" 107
$ 4,473  T
MCB-1218 STANDARD 18-1/2" 12" 2-5/8" 161
$ 7,583  T
MCB-1218-FP FINE 18-1/2" 12" 2-5/8" 161
$ 8,056  T
MCB-1224 STANDARD 24-1/2" 12" 2-5/8" 213
$ 9,386  T
MCB-1224-FP FINE 24-1/2" 12" 2-5/8" 213
$ 10,390  T
PRODUCT CERTIFICATIONS
Long Form Certification
  • A form showing the advertised sizes and/or tolerances.

  • The actual measurements taken of those sizes and/or tolerances.

  • A statement that the standards used to measure the tool are traceable to the National Institute of Standards and Technology.
Short Form Certification
  • A form certifying that the specified product met manufacturer's specifications before leaving our factory.
MODEL # DESCRIPTION WT(#) PRICE
(US$)
CERT-LONG Certification - Long 0
$ 161
CERT-SHORT Certification - Short 0
0

How To Grind A Surface Grinder Chuck


!!!!!     FOR IMPORTANT HOLDING POWER INFORMATION CLICK HERE     !!!!!
Need Repair Parts?
Click MODEL # Below To View Repair Parts
MCB-47 and MCB-47-FP
MCB-510 and MCB-510-FP
MCB-612 and MCB-612-FP
MCB-614 and MCB-614-FP
MCB-618 and MCB-618-FP
MCB-812 and MCB-812-FP
MCB-815 and MCB-815-FP
MCB-818 and MCB-818-FP
MCB-824 and MCB-824-FP
MCB-1015 and MCB-1015-FP
MCB-1018 and MCB-1018-FP
MCB-1024 and MCB-1024-FP
MCB-1212 and MCB-1212-FP
MCB-1218 and MCB-1218-FP
MCB-1224 and MCB-1224-FP
