MV-14-S
MASTER-VIEW™ 14" OPTICAL COMPARATORS
PROUDLY MADE IN OUR FACILITY IN THE U.S.A.
U.S. Flag
ASK OUR COMPETITION IF THEY CAN SAY THE SAME.

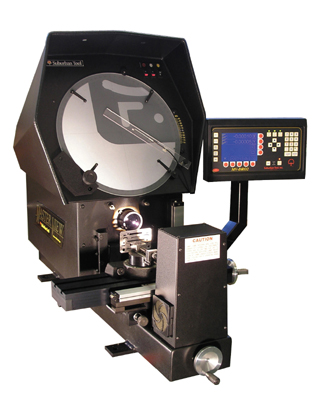

MV-14-SE Master-View 14" Optical Comparator
  • Features Suburban's own MV-14-DRO2 3-axis digital readout with:

    • Part view to show the relationship between all part features.
    • 5.7" LCD screen.
    • Direct measurement of circles, arcs, angles, points, lines, distance, perpendicularity, parallelism and slots.
    • Part programming.
    • Auto-enter, looping and auto-finish.
    • 360° digital protractor.
    • Multiple languages.
    • Output to PC or printer.
    • Inch-mm conversion.
    • Skew capability.
    • Display reads to 0.0001".

  • 1 micron glass scales.

  • Surface illumination through duplex fiber optics.

  • High capacity 4" x 8" travel stage with 4-1/2" x 19" work surface.

  • Ball way construction handles loads to 100lbs.

  • Two long-life tungsten-halogen light sources.

  • Extra bright surface illumination through duplex fiber optics.

  • Individual switches select profile, surface or combination surface-profile illumination modes.

  • Heavy-duty monorail type, welded steel frame.

  • Rotary frosted glass screen with 90° crosslines and 360° protractor markings.

  • Screen-mounted overlay chart clips.

  • 10 power lens system.

  • Weighs 230 lbs.

  • Measures 48-1/2" long x 22-1/4" wide x 34" high.


          Additional MV-14-S Model:

MV-14-SE MV-14-S with fiber optic edge detection.


SPECIFICATIONS SUBJECT TO CHANGE WITHOUT NOTICE
