MV-14-Q

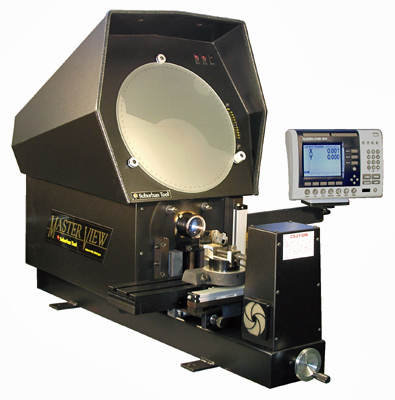

MASTER-VIEW™ 14" OPTICAL COMPARATORS

PROUDLY MADE IN OUR FACILITY IN THE U.S.A.

ASK OUR COMPETITION IF THEY CAN SAY THE SAME.

Metronics Quadra-Chek^® 200 series digital readout* with:
- Geometric functions.
- Easy calculation of distance, angle, intersection, radius, diameter, part skew, etc.
- Output to printer or PC.
- Display reads to 0.0001".
1 micron glass scales.
High capacity 4" x 8" travel stage with 4-1/2" x 19" work surface.
Ball way construction handles loads to 100lbs.
Two long-life tungsten-halogen light sources.
Extra bright surface illumination through duplex fiber optics.
Individual switches select profile, surface or combination surface and profile illumination modes.
Heavy-duty monorail type, welded steel frame.
Rotary frosted glass screen with 90° crosslines and 360° protractor markings.
Clip-on overlay chart clips.
10 power lens system (20 & 50X optional).
Weighs 227 lbs.
Measures 48-1/2" long x 22-1/4" wide x 34" high.

**Additional MV-14-Q Models Available:**
	MV-14-QE	MV-14-Q with fiber optic edge detection.
	MV-14-QR	MV-14-Q with digital protractor.
	MV-14-QRE	MV-14-Q with fiber optic edge detection and digital protractor.

* Digital readout supplied by Metronics Incorporated.

SPECIFICATIONS SUBJECT TO CHANGE WITHOUT NOTICE
